Swahusada is the official distributor of Dwyer in Indonesia. All items on this website are new, and have a direct factory warranty. If you need another type, you can chat with us directly. We serve pre-order and indent purchases for all Dwyer units.

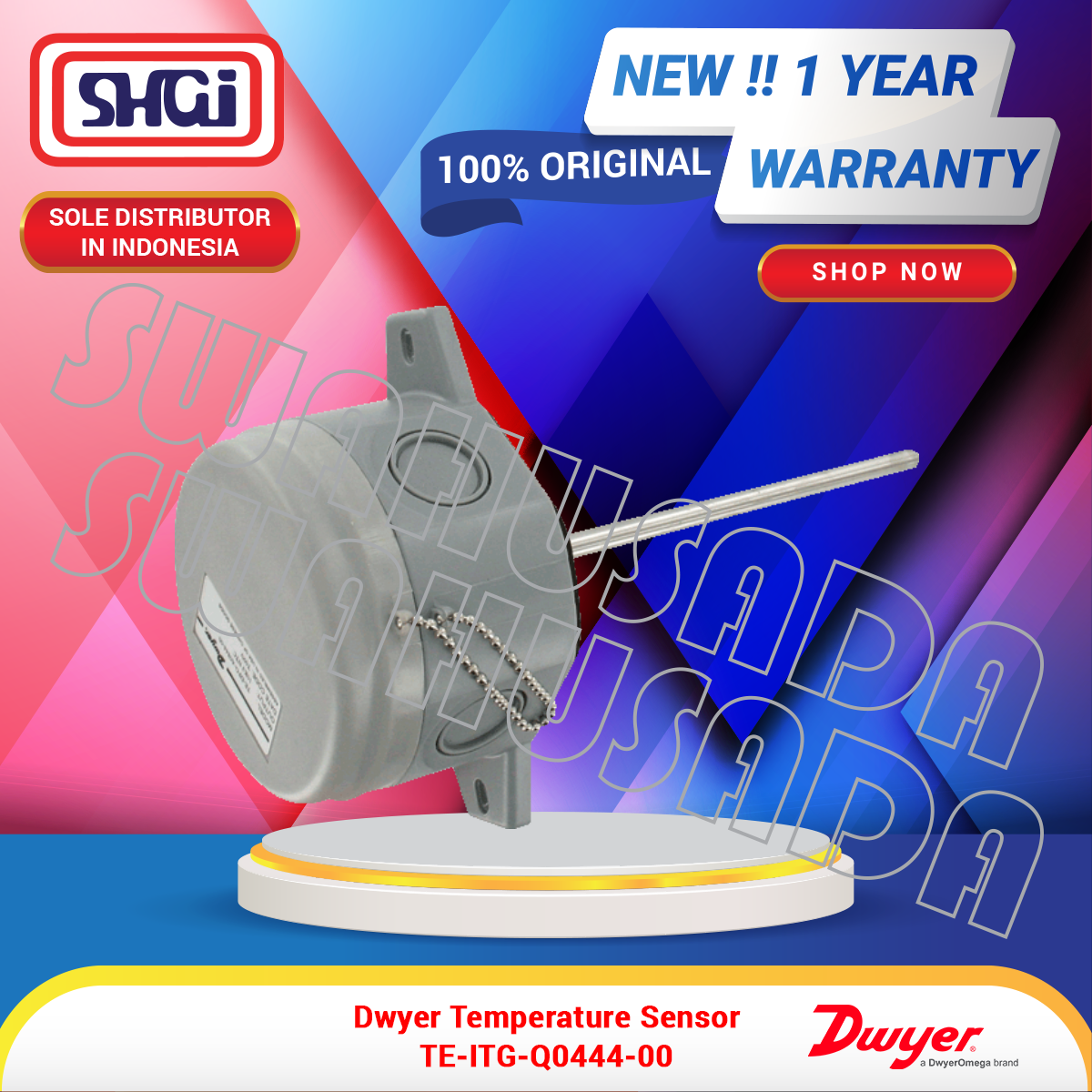

DWYER IMMERSION TEMPERATURE SENSORS TE-ITG-Q0444-00
TE-ITG-Q0644-00
The Series TE-I Immersion Style Temperature Sensors accurately measure water temperature inside chilled and hot water loops in HVAC systems. Thermowells are required to protect the electrical connection from the process water and to allow replacement of the sensors without draining the system.
• Immersion Temperature Probe
• 10k Ω type III with 11k Ω shunt
• Resistance Output
• General Purpose Housing
• 4″ Probe ( TE-ITG-Q0444-00) & 6″ Probe (TE-ITG-Q0644-00)
• 1/4″ Double Encapsulated Probe
• -40 to 302°F (-40 to 150°C)
Benefits/Features :
• Integral 1/2˝ NPSM connection for direct mounting to a thermowell
• 1/4 turn housing cover with chain to prevent dropping
• Multiple conduit knockouts for easy installation positioning
• General purpose or weatherproof enclosure options
• Terminal connection eliminates need for wire nuts
Product Application :
• Chiller or boiler loops
• Building automation
